Z55 MagneRide bypass guide (AutoRide delete)
For 2005-2014 Cadillac Escalade, Chevrolet Tahoe and Suburban, and GMC Yukon, plus the 2007-2013 Chevrolet Avalanche LTZ.
Written by M&P USA, the veteran-owned company that designs, builds, and supports these kits in the USA.
A Z55 MagneRide bypass, also called an AutoRide delete, lets you replace failing AutoRide shocks with standard shocks or coilovers without the “Service Suspension System” warning or the speed limiter. This guide explains how the system works, why it fails, what the bypass does, and exactly what to order.
The short answer
- Z55 is AutoRide, and the year picks the kit. Every 2005-2014 Escalade, Tahoe, Suburban, and Yukon and the 2007-2013 Avalanche LTZ takes our 2005-2014 Kit, whether the glove box label says Z55 or Z95.
- One kit covers one axle. For all four corners, the 2005-2014 2-axle kit costs less than two single kits and includes the rear pigtails free.
- Check the rear plug. The rear 2-pin shock plugs are a different style. A white side-by-side plug takes the C clip included with the kit; a plug with a pink O-ring needs the Z55 Pigtail Set.
- Label says Z95? On 2005-2014 models it still takes the 2005-2014 Kit, because those years use the older-style plugs.
Your model year decides the kit
Open the glove box and find the Service Parts Identification sticker, a grid of short 3-character codes. Look for Z55 or Z95, then pick the kit by model year:
- 2005-2014 (Z55 or Z95 label): the 2005-2014 Kit
- 2015-2020 (Z95): the 2015-2020 Kit, see our Z95 guide
- 2021-2023: the 2021-2023 Kit
Codes on the sample sticker are for illustration. Can’t find the label? Send us your VIN and we’ll confirm the kit before you order.

What Z55 AutoRide is
Z55 is GM’s option code for AutoRide, the electronically controlled suspension on 2000s Cadillac Escalade, Chevrolet Tahoe, Suburban, and Avalanche, GMC Yukon and Yukon XL models. Each shock has an electrically controlled valve that the suspension control module adjusts many times per second.
Ride height sensors at the wheels tell the module how high the body sits, and on models with rear air leveling, air sleeves on the rear shocks raise the rear when you load up or tow.
Shoppers usually call it MagneRide. Strictly, MagneRide (Z95) uses magnetic fluid, while AutoRide uses valves. The bypass job is the same either way; for 2015-2020 trucks and SUVs, see our Z95 MagneRide bypass guide.
Signs your AutoRide is failing
- “Service Suspension System” or “Service Ride Control” on the dash
- “Speed Limited” warnings that cap your top speed
- A harsh, bouncy, or floaty ride, or more body lean in turns
- An oily film on a shock body, which means the seal is leaking
- The rear sitting low, or the leveling compressor running longer than it used to
These parts are 12 to 20 years old on most Z55 vehicles, so failures are normal wear, not bad luck.
Repair or bypass: what it costs
| Option | What it involves | Typical parts cost |
|---|---|---|
| Factory AutoRide parts | New electronic shocks (rear leveling shocks list near $800 each from GM), plus a compressor or ride height sensors if those failed | Often $1,500 to $3,500+ before labor |
| 2005-2014 Kit plus standard shocks | Plug-in simulators for one axle, with any standard shocks or coilovers | $124.99 per axle, plus shocks |
| 2005-2014 2-axle kit plus standard shocks | All four corners, rear pigtails included | $229.99, plus shocks |
GM parts prices change often and vary by dealer; confirm current pricing for your VIN.
How the Z55 MagneRide bypass works
The suspension module watches two things: the electrical circuit of each shock, and the voltage from each ride height sensor. Unplug a factory shock and the module sees an open circuit, stores a fault, and turns on the warning, and with two or more shocks missing, the speed limiter.
The module checks every corner
Your suspension module watches each shock circuit and, on trucks and SUVs, each ride height sensor.
A missing shock sets a fault
Unplug a failed MagneRide shock and the module sees an open circuit: Service Suspension, and often a speed limit.
Our simulator plugs in
It plugs into the factory connector and gives the module the signal it expects. No fault, no warning.
A Z55 MagneRide bypass plugs into those same factory connectors. The shock simulators give the module the electrical load it expects, and the ride height simulators send a steady, in-range signal in place of the factory sensors. The module sees a healthy system, so no fault is set. Nothing gets cut and nothing gets programmed.
“Perfect for the surprise on my 2012 Tahoe. Had to use same brand bypasses to get lights turned off after auto ride delete and lowering kit.”
Jensen, 2012 Tahoe owner, review on our website
The rear plug: C clip or pigtails
On 2005-2014 trucks and SUVs, the front plugs straight in. At the rear, the 2-pin shock plugs are a different style, so check yours:
- White side-by-side plug: the C clip included with every 2005-2014 Kit locks the simulator onto it. No splicing.

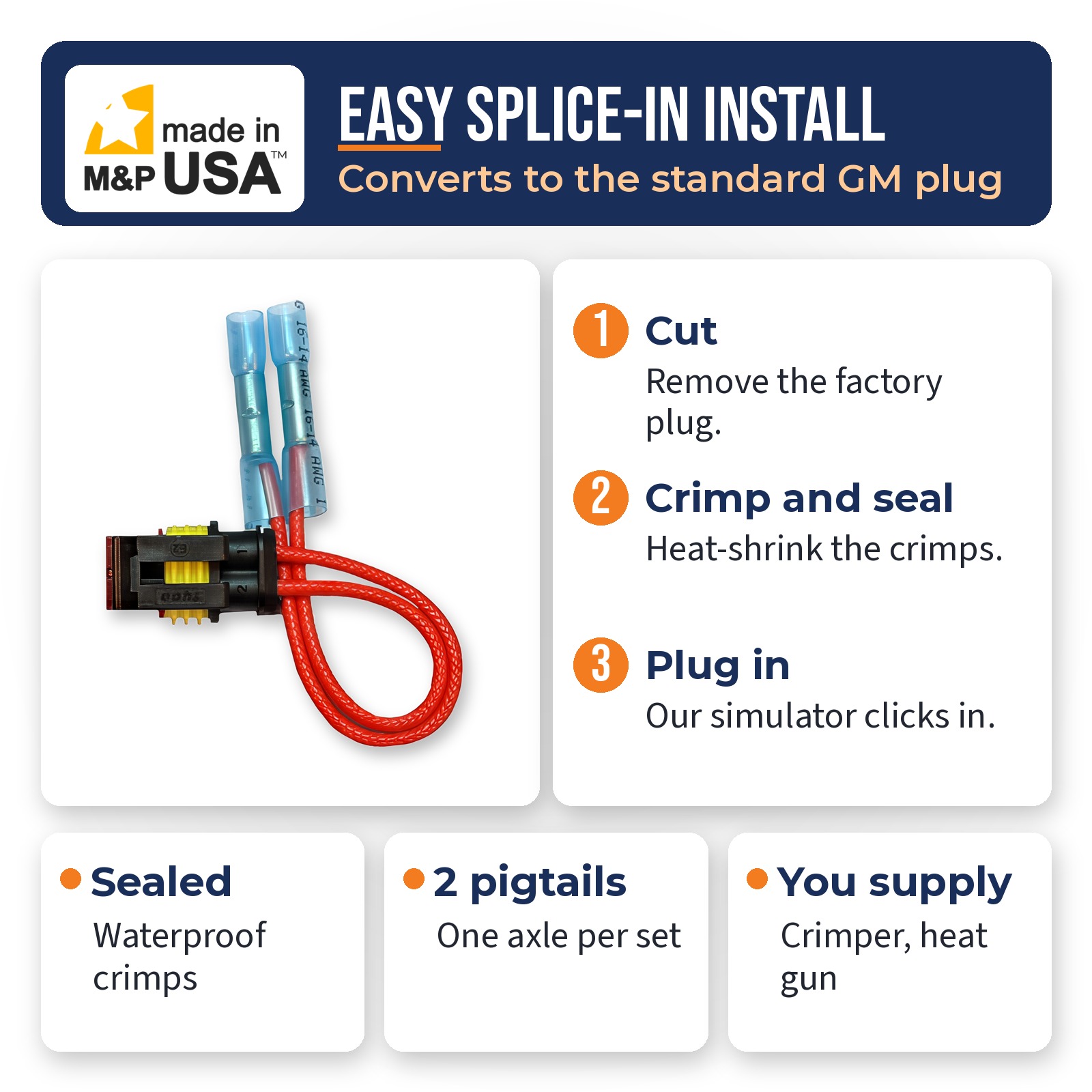

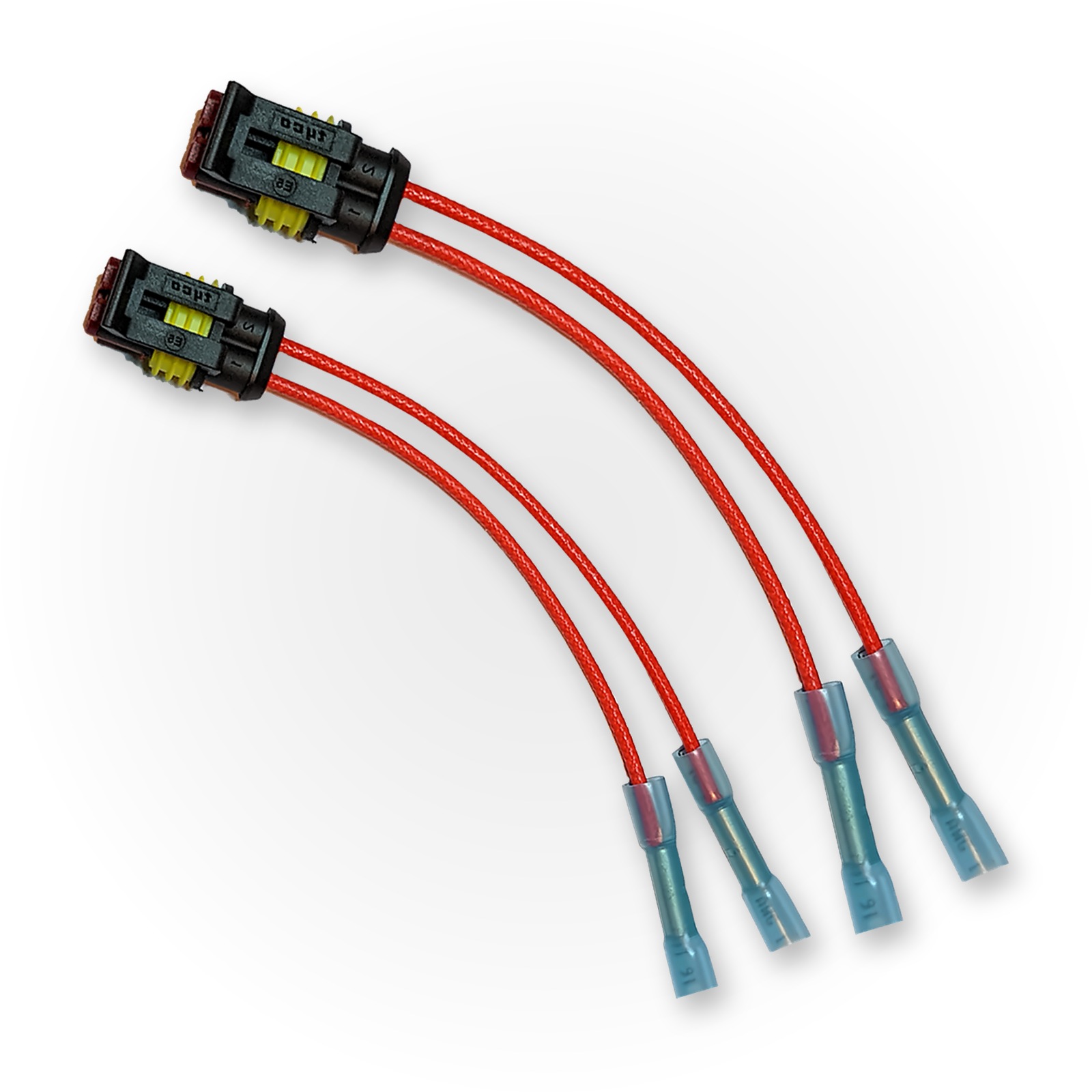

- Plug with a pink O-ring: splice our Z55 Pigtail Set onto the rear wires with the included waterproof heat-shrink connectors, then plug in the simulators.
The pigtails are free with two 2005-2014 Kits or the 2005-2014 2-axle kit.



What to order
Converting front and rear? The 2-axle kit is the better buy and includes the pigtails. Doing one axle? The single kit covers it.
2005-2014 2-axle kit
$229.99
All four corners, with the rear pigtails included free.
2005-2014 Kit (one axle)
$124.99
Front or rear: 2 shock simulators and 2 ride height simulators. Rated 4.8 by 34 customers.
| Your plan | Order this |
|---|---|
| Front only | One 2005-2014 Kit |
| Rear only | One 2005-2014 Kit plus the Pigtail Set if your rear plug has a pink O-ring |
| All four corners | The 2005-2014 2-axle kit (pigtails free), or two 2005-2014 Kits |
| Ride height simulators only | Z55 ride height 2-pack or 4-pack |
| Label says Z95 | The same kit. On 2005-2014 models the label doesn’t change the kit. |
Rear air leveling and towing
If you tow or haul heavy loads, many owners keep the factory rear air shocks and convert only the front, since one 2005-2014 Kit covers one axle.
If you replace the rear with standard non-air shocks, the leveling compressor is no longer needed. Once the bypass is installed, you can generally pull the fuse or the relay for the compressor. Leave the compressor itself plugged in. Contact us if you want help deciding.
Installation in five steps
- Replace the shocks. Install your new standard shocks or coilovers.
- Shock simulators. Plug a shock simulator into each factory shock connector on the axle you converted. At the rear, fit the included C clip or splice in the pigtails first, depending on your plug.
- Ride height simulators. Plug them into the factory ride height sensor connectors as shown in the printed instructions.
- Secure everything. Zip-tie the simulators to the frame, away from the exhaust and moving parts.
- Clear the codes. Start the vehicle and confirm the suspension warning is gone; clear stored codes with a scan tool if needed.
Every kit ships with printed instructions, and US-based support is a message away.

Frequently asked questions
Is Z55 AutoRide the same as MagneRide?
Not exactly. Z55 AutoRide uses electronically controlled valves in each shock, while MagneRide (Z95) uses magnetic fluid. Most shoppers call both MagneRide. On 2005-2014 trucks and SUVs, both take our 2005-2014 Kit, because those years use the older-style plugs.
Does a plug-in Z55 MagneRide bypass really clear the warning?
Yes, when every unplugged shock connector has a simulator and the ride height sensor connectors have ride height simulators. Our 2005-2014 Kit averages 4.8 stars from 34 reviews on our website.
Why doesn’t the kit plug in at the rear?
On 2005-2014 trucks and SUVs, the rear 2-pin shock plugs are a different style. A white side-by-side plug takes the C clip included with the kit. A plug with a pink O-ring needs our Z55 Pigtail Set spliced onto the rear wires, and then the simulators plug right in. The pigtails come free with two 2005-2014 Kits or the 2005-2014 2-axle kit.
Do I need one kit or two?
One kit converts one axle. For all four corners, order the 2005-2014 2-axle kit or two 2005-2014 Kits.
My 2009-2014 Escalade label says Z95. Which kit?
Use the 2005-2014 Kit. Cadillac fitted Z95 MagneRide to some Escalades in those years, but every 2009-2014 Escalade uses the older-style plugs, so the 2005-2014 Kit is the one that fits.
Can I lift or lower my truck with this kit?
Yes. Because the ride height simulators replace the factory sensor signals, the module no longer reacts to the new ride height.
What do I do with the rear air compressor?
If you switch the rear to standard non-air shocks, you can generally pull the fuse or the relay for the leveling compressor once the bypass is installed. Leave the compressor itself plugged in.
Will the speed limiter go away?
Yes. With the shocks and ride height sensor connectors handled by the kit, there is no stored fault to trigger it.
What warranty comes with it?
A lifetime warranty on every part, from a veteran-owned business that makes the kits in the USA.
Still not sure which kit fits?
Enter your year, make, and model in our Find My Kit tool, or send us your VIN and a real person will confirm the right kit before you order. Want the big picture first? See every MagneRide bypass kit on one page.
