Z95 MagneRide bypass guide

For 2015-2020 Cadillac Escalade, Chevrolet Tahoe and Suburban, GMC Yukon Denali, and 2015-2018 GMC Sierra 1500 Denali.

Written by M&P USA, the veteran-owned company that designs, builds, and supports these kits in the USA.

A Z95 MagneRide bypass, also called a MagneRide delete, lets you replace failing magnetic ride shocks with standard shocks or coilovers without the “Service Suspension System” warning or the speed limiter. This guide covers how the system works, why it fails, what the bypass does, and exactly what to order.

The short answer

  • Z95 is MagneRide. If your SUV is a 2015-2020 model with MagneRide (or a 2015-2018 Sierra 1500 Denali), the 2015-2020 Kit, our Z95 MagneRide bypass kit, is the right part.
  • 2005-2014 with a Z95 label? Those years use older-style plugs, so they take our 2005-2014 Kit; see our Z55 guide.
  • One kit covers one axle. For all four corners, the 2015-2020 2-axle kit costs less than two single kits.
  • No cutting, splicing, or programming. Simulators plug into the factory shock and ride height connectors, and the warning and speed limit go away once the codes clear.
  • 2021-2023 SUV? Its label also says Z95, but it takes our 2021-2023 Kit; see our 2021-2023 guide. Pick by model year.

Your model year decides the kit

Open the glove box and find the Service Parts Identification sticker, a grid of short 3-character codes. Look for Z95 or Z55, then pick the kit by model year:

Codes on the sample sticker are for illustration. Can’t find the label? Send us your VIN and we’ll confirm the kit before you order.

Check your plugs: newer-style plugs take the 2015-2020 Kit, older-style plugs take the 2005-2014 Kit
Newer-style plugs mean the 2015-2020 Kit. Older-style plugs take the 2005-2014 Kit.

How Z95 MagneRide works

Z95 is GM’s option code for MagneRide, also called Magnetic Ride Control. Each shock is filled with fluid that carries fine iron particles. A coil inside the shock changes how thick that fluid acts, so the suspension control module can firm up or soften each corner many times per second.

Ride height sensors at the wheels tell the module how high the body sits. On models with rear air leveling, air sleeves on the rear shocks keep the rear level when you load up or tow.

Most 2005-2014 trucks and SUVs use Z55 AutoRide, which uses valves instead of magnetic fluid. Shoppers call both MagneRide. Either way, every 2005-2014 model takes our 2005-2014 Kit, and our Z55 MagneRide bypass guide covers it.

Signs your MagneRide is failing

  • “Service Suspension System” on the dash
  • “Speed Limited” warnings; customers report a cap around 80 to 85 mph
  • A harsh, bouncy, or floaty ride, or more body lean in turns
  • An oily film on a shock body, which means the seal is leaking
  • With rear air leveling: the rear sitting low, or the compressor running longer than it used to

Most Z95 trucks and SUVs are now 6 to 11 years old, so worn MagneRide shocks are normal wear, not bad luck.

Repair or bypass: what it costs

OptionWhat it involvesTypical parts cost
Factory MagneRide partsNew magnetic ride shocks and struts. GM list prices run close to $1,000 per corner on many of these SUVs.Often $1,800 to $3,800+ before labor
2015-2020 Kit plus standard shocksPlug-in simulators for one axle, with any standard shocks or coilovers$124.99 per axle, plus shocks
2015-2020 2-axle kit plus standard shocksAll four corners in one order$229.99, plus shocks

GM parts prices change often and vary by dealer; confirm current pricing for your VIN.

How the plug-in bypass works

The suspension module watches two things: the electrical circuit of each shock’s coil, and the voltage from each ride height sensor. Unplug a MagneRide shock and the module sees an open circuit, stores a fault, and turns on the warning, often with the speed limiter.

1

The module checks every corner

Your suspension module watches each shock circuit and, on trucks and SUVs, each ride height sensor.

2

A missing shock sets a fault

Unplug a failed MagneRide shock and the module sees an open circuit: Service Suspension, and often a speed limit.

3

Our simulator plugs in

It plugs into the factory connector and gives the module the signal it expects. No fault, no warning.

Our 2015-2020 Kit plugs into those same factory connectors. The shock simulators give the module the electrical load it expects at each shock connector, and the ride height simulators send a steady, in-range signal in place of the factory sensors. The module sees a healthy system, so no fault is set.

Everything plugs in at the corners with sealed, weatherproof OEM-style connectors. Nothing gets cut and nothing gets programmed.

“Put on my 2015 Suburban to get rid of the MagneRide in the front, and it also works for the rear air suspension to get rid of the service suspension warning. Best and most affordable option to go to passive shocks without breaking the bank!”

Matt O., 2015 Suburban owner, review on our website

Which trucks and SUVs are Z95

YearsVehicleKit
2008-2014Cadillac Escalade, ESV, EXT with a Z95 label (Platinum, Hybrid, most 2011-2014 Luxury and Premium) and the 2009-2013 GMC Yukon Denali Hybrid2005-2014 Kit (older-style plugs, whatever the label says). Hybrids: contact us first.
2015-2020Cadillac Escalade, Escalade ESV2015-2020 Kit
2015-2020Chevrolet Suburban LTZ (2015-2016), Premier (2017-2020), RST 6.2L Performance Package2015-2020 Kit
2015-2020Chevrolet Tahoe LTZ (2015-2016), Premier (2017-2020), RST 6.2L Performance Package2015-2020 Kit
2015-2020GMC Yukon Denali, Yukon Denali XL2015-2020 Kit
2015-2018GMC Sierra 1500 Denali2015-2020 Kit
2021-2023Escalade, Tahoe, Suburban, Yukon2021-2023 Kit (not for Air Ride)

Customer-reported fitment: customers have used the 2015-2020 Kit on the 2020 Chevrolet Tahoe RST and the 2020 GMC Yukon XL Denali, both now in the table above.

Not covered: 2019 and newer Silverado and Sierra pickups use a different system (Adaptive Ride Control), and 2021 and newer SUVs with Air Ride Adaptive Suspension use air at all four corners. Our kits are not for either. Cars with MagneRide (Camaro, Corvette, ATS, CTS, XTS) use our 2013-2018 Car Kit; see our Car Kits guide.

What to order

2015-2020 Kit for a Z95 MagneRide bypass, with 2 shock simulators and 2 ride height simulators
The 2015-2020 Kit, our Z95 MagneRide bypass kit: 2 shock simulators and 2 ride height simulators for one axle.

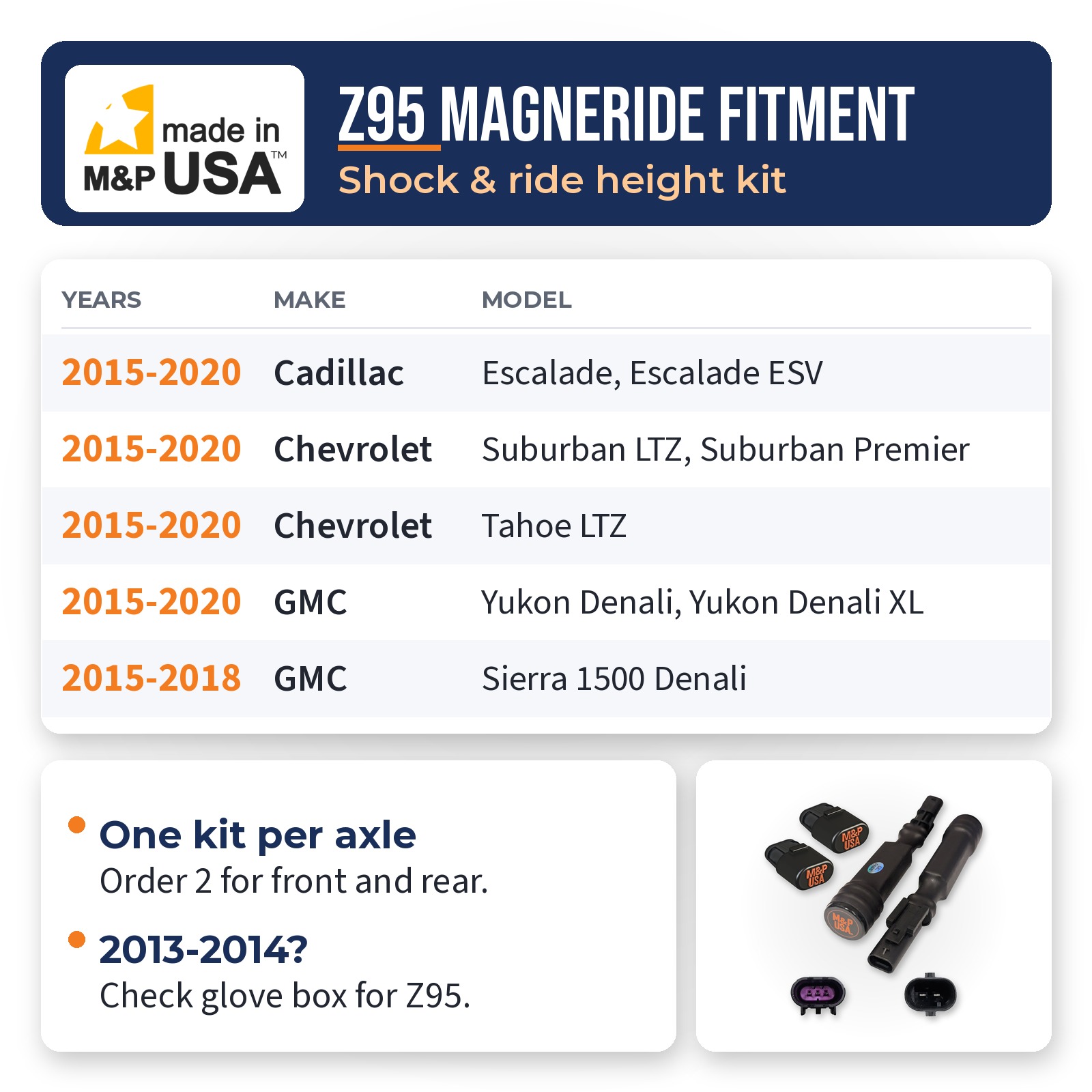

Z95 MagneRide bypass fitment chart for Escalade, Tahoe, Suburban, Yukon Denali, and Sierra Denali
2015-2020 Kit fitment at a glance.

Converting front and rear? The 2-axle kit is the better buy. Doing one axle? The single kit covers it.

2015-2020 2-axle kit

$229.99

All four corners: 4 shock simulators and 4 ride height simulators. Costs less than two single kits.

Shop the 2-axle kit

2015-2020 Kit (one axle)

$124.99

Front or rear: 2 shock simulators and 2 ride height simulators. Rated 4.9 by 86 customers.

Shop the 2015-2020 Kit

Your planOrder this
Front only or rear onlyOne 2015-2020 Kit
All four cornersThe 2015-2020 2-axle kit, or two 2015-2020 Kits
Ride height simulators onlyZ95 ride height 2-pack (one axle) or 4-pack (both axles)
2005-2014 model (any label)The 2005-2014 Kit instead
2021-2023 SUVThe 2021-2023 Kit or 2021-2023 2-axle kit

Unlike 2005-2014 trucks, 2015-2020 rear connectors plug straight in, so there are no pigtails to splice.

Rear air, towing, and lift kits

M&P USA Z95 MagneRide bypass kit with 2 shock simulators and 2 ride height simulators on a workbench
With ride height simulators in place, lifting or leveling does not set new suspension codes.

Keeping rear air leveling

If you keep rear air shocks, factory or aftermarket non-magnetic, leave the rear ride height sensors connected so Automatic Level Control keeps working. Owners who tow or haul heavy loads often keep rear air for that reason.

Switching to standard rear shocks

Connect the rear air lines to each other so the compressor does not run constantly. The printed instructions show how.

Lift, level, or lowering kits

The ride height simulators send the module a steady, normal reading, so a height change does not set suspension codes. Customers run the 2015-2020 Kit with leveling kits, lift kits, and lowered setups. Contact us if you want help planning yours.

Installation in five steps

  1. Ride height first. With the vehicle off and safely raised, plug a 3-pin ride height simulator into each factory ride height sensor connector until it clicks.
  2. Cycle the power. Turn the vehicle on for 30 seconds, then off, so the module reads the new ride height.
  3. Shocks and shock simulators. Install your new shocks or coilovers, then plug a 2-pin shock simulator into each factory shock connector.
  4. Secure everything. Zip-tie the simulators to a metal surface, away from the exhaust and other heat, and not against plastic wire loom.
  5. Clear codes and trim. With the wheels on the ground, clear the codes (scan tool, up to 40 ignition cycles, or the battery off for 30 minutes). Then have a Ride Height Trim done with a scan tool: required on GMC Denali models, recommended on all others.

Every kit ships with printed instructions, and US-based support is a message away. We recommend installation by a certified technician.

Made and supported in the USA by M&P USA, a certified veteran-owned company
Designed, built, and supported in the USA by M&P USA, a veteran-owned company.

Frequently asked questions

Is Z95 the same as MagneRide?

Yes. Z95 is GM’s option code for MagneRide (Magnetic Ride Control) on trucks and SUVs. Look for Z95 on the Service Parts Identification label in your glove box.

Which vehicles does the 2015-2020 Kit fit?

Our Z95 MagneRide bypass kit fits the 2015-2020 Cadillac Escalade and Escalade ESV, Chevrolet Suburban and Tahoe LTZ, Premier, and RST 6.2L Performance Package, GMC Yukon Denali and Yukon Denali XL, and 2015-2018 GMC Sierra 1500 Denali with Z95 MagneRide. A 2005-2014 model with a Z95 label takes our 2005-2014 Kit instead.

Is my 2009-2014 Escalade Z95 or Z55?

It could be either; Cadillac used both systems in those years. Either way, every 2009-2014 Escalade uses the older-style plugs, so it takes our 2005-2014 Kit. Send us your VIN if you want us to confirm.

My 2021-2023 SUV label says Z95. Which kit?

Use our 2021-2023 Kit, not the 2015-2020 Kit. GM kept the Z95 code on these SUVs but changed the connectors, so pick the kit by model year. It is not for SUVs with Air Ride Adaptive Suspension.

Does a plug-in bypass really clear the warning?

Yes, when every unplugged shock connector has a shock simulator and the ride height sensor connectors have ride height simulators. Our 2015-2020 Kit averages 4.9 stars from 86 reviews on our website.

Will the speed limiter go away?

Yes. Once the simulators are installed and the codes clear, there is no stored fault to trigger the limit.

Do I need one kit or two?

One kit converts one axle. For all four corners, order the 2015-2020 2-axle kit, which costs less than two single kits.

Do I need a Ride Height Trim after installing?

It is required on GMC Denali models and recommended on all other vehicles. Any mechanic or dealership can do it with a scan tool in a few minutes.

Does it work with rear air suspension?

Yes. To keep Automatic Level Control working with non-magnetic rear air shocks, leave the rear ride height sensors connected. If you switch to non-air rear shocks, connect the rear air lines to each other so the compressor does not run constantly.

Will it fit my 2019 or newer Silverado or Sierra pickup?

No. Those pickups use a different system (Adaptive Ride Control) that our kits do not cover.

Will it work on my car?

No, the 2015-2020 Kit is for trucks and SUVs. Cars with MagneRide, like the Camaro, Corvette, ATS, and CTS, use our 2013-2018 Car Kit.

What warranty comes with it?

A lifetime warranty on every part, from a veteran-owned business that makes the kits in the USA.

Still not sure which kit fits?

Enter your year, make, and model in our Find My Kit tool, or send us your VIN and a real person will confirm the right kit before you order. Want the big picture first? See every MagneRide bypass kit on one page.

MagneRide® is a registered trademark of BWI Group. Other names are used only to identify compatible vehicles. M&P USA is not affiliated with, endorsed by, or sponsored by BWI Group or General Motors. Factory part prices and repair costs mentioned are estimates.
