M&P USA GM MagneRide Ride Height Sensor Simulator 4-Pack, Z55/Z95 2005-2014

$139.99 & Free Shipping

Ride height simulator 4-pack for both axles of 2005-2014 Cadillac Escalade, ESV, and EXT, Chevy Tahoe and Suburban, GMC Yukon, and 2007-2013 Chevrolet Avalanche LTZ, whether the glove box label says Z55 or Z95. Plugs into the factory 3-pin ride height connectors. Replacing the shocks too? Get our 2005-2014 2-Axle Kit. 2015-2023 models take our 2015-2023 ride height 4-pack.

In stock, ready to ship

Free US shipping on every order!

  • 30-day hassle-free returns
  • Lifetime warranty
  • Secure payments
Designed, built, and supported in the USA
Veteran-owned business, since 2012

See it in 20 seconds

A quick look at what it fixes, how to check your fit and how it installs. Tap play when you are ready.

M&P USA  |  Made in the USA  |  Veteran owned

2005-2014 ride height simulator 4-pack

4 plug-and-play ride height simulators for both axles (front and rear) of 2005-2014 Cadillac Escalade, Chevrolet Tahoe and Suburban, GMC Yukon, and 2007-2013 Chevrolet Avalanche LTZ with factory AutoRide or MagneRide, whether the glove box label says Z55 or Z95.

✓ Lifetime warranty✓ 30-day returns✓ US-based support

The M&P USA 2005-2014 ride height simulator 4-pack gives you 4 plug-and-play ride height simulators for both axles (front and rear) of a 2005-2014 GM truck or SUV with factory AutoRide or MagneRide (Z55 or Z95 label) and the older-style plugs. Each 2005-2014 ride height simulator plugs into a factory 3-pin ride height sensor connector and sends the suspension module a steady, normal ride height reading, which helps prevent the “Service Suspension System” warning and suspension fault codes.

Replacing the shocks too? You also need shock simulators, which come with our complete 2005-2014 Kit, the MagneRide bypass for these years, and our 2005-2014 2-Axle Kit. Made in the USA by a certified veteran-owned company and backed by our lifetime warranty.

The short answer

  • Ride height simulators only, for both axles (front and rear). For one axle, choose the 2005-2014 ride height simulator 2-pack.
  • Right part for 2005-2014 models: Escalade, Tahoe, Suburban, or Yukon, or a 2007-2013 Avalanche LTZ, whether the glove box label says Z55 or Z95.
  • Replacing the shocks too? Get a complete kit instead: the 2005-2014 Kit (one axle) or 2005-2014 2-Axle Kit (both axles, pigtails free).
  • Keeping rear air ride? Leave the rear ride height sensors connected (see below). More detail in our Z55 MagneRide bypass guide.

Use this 2005-2014 ride height simulator 4-pack if you have a 2005-2014 GM truck or SUV with the Z55 AutoRide package (see the fitment table below) and you need only the ride height simulators for both axles (front and rear).

Get a complete kit instead if

Not sure? Use our Find My Kit tool or send us your year, make, and model and we’ll confirm the right part before you order.

Before you buy parts, enter your VIN in the NHTSA recall lookup to check for open safety recalls; recall repairs are free at a dealer.

Rear air ride? Read this first

The rear ride height sensors control Automatic Level Control. To keep auto leveling working with rear air shocks, leave the rear ride height sensors connected. Contact us if you’re not sure which sensors to replace.

Check your plugs

Pick by model year and plugs, not the label. 2005-2014 models have the older-style plugs and take this pack, even when the glove box label says Z95. 2015-2023 models take our 2015-2023 ride height 4-pack. Plugs don’t match? Send us a message before you order.

Check your plugs: the older-style 3-pin ride height plug takes the 2005-2014 ride height simulator 4-pack
The older-style 3-pin ride height plug (left column) takes this pack.

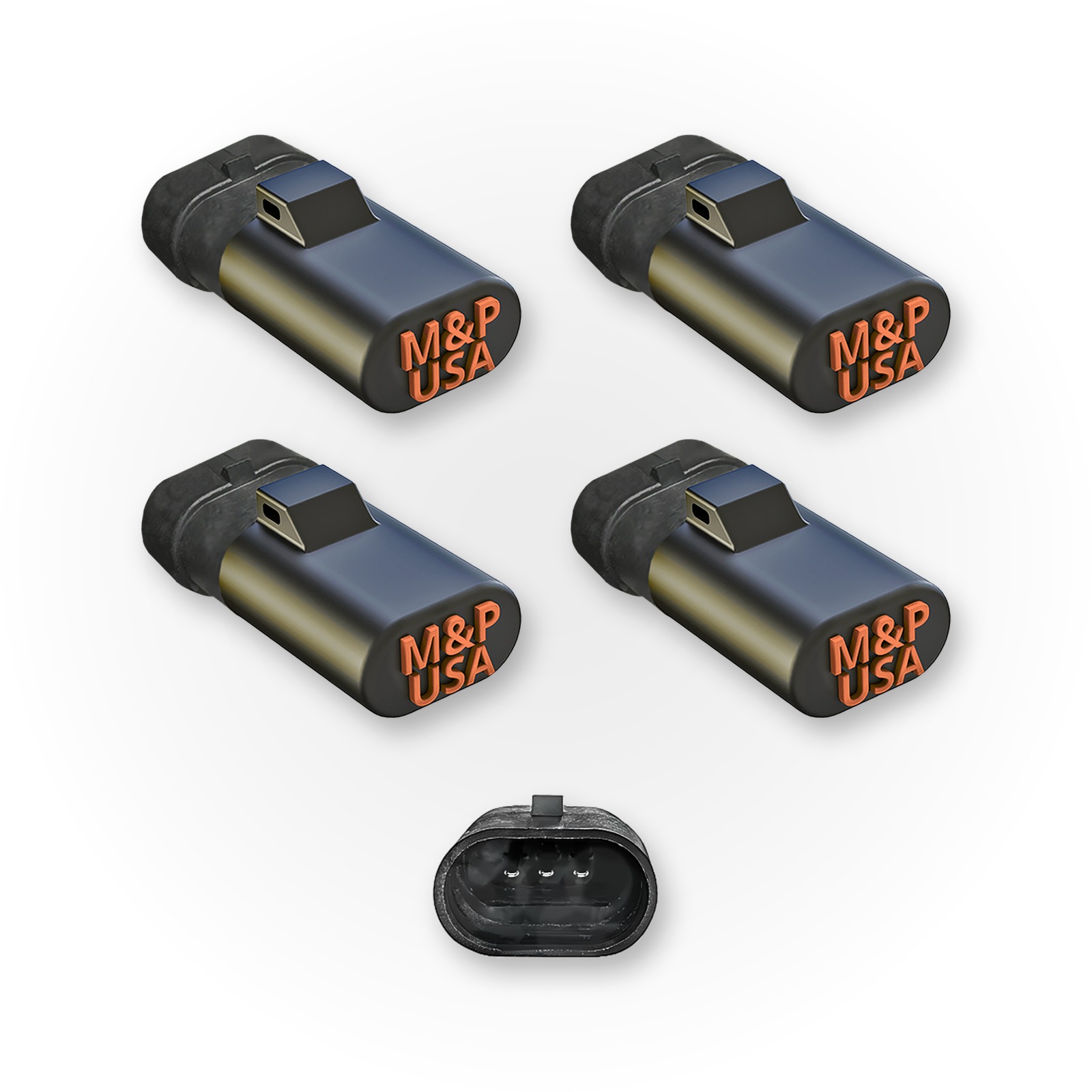

What’s included

M&P USA Z55 ride height sensor simulator 4-pack with the factory 3-pin connector
The 2005-2014 ride height simulator 4-pack: 4 simulators for both axles (front and rear).
  • 4 ride height simulators with the factory-style 3-pin connector: each 2005-2014 ride height simulator replaces the signal from a ride height sensor so the suspension module sees a normal ride height.
  • Zip ties for mounting, plus printed installation instructions.

Specifications

Item Detail
Product 2005-2014 ride height simulator 4-pack (MPUSA-RH55-4PK)
GM option code Z55 AutoRide or Z95 MagneRide (2005-2014, older-style plugs)
Coverage Both axles (front and rear)
Pieces 4 ride height sensor simulators
Connector 3-pin factory plug, plug and play
Shock simulators Not included (see our complete kits)
After installation Ride Height Trim Procedure with a scan tool (required on GMC Denali)
Warranty Lifetime
Returns 30 days
Made in USA

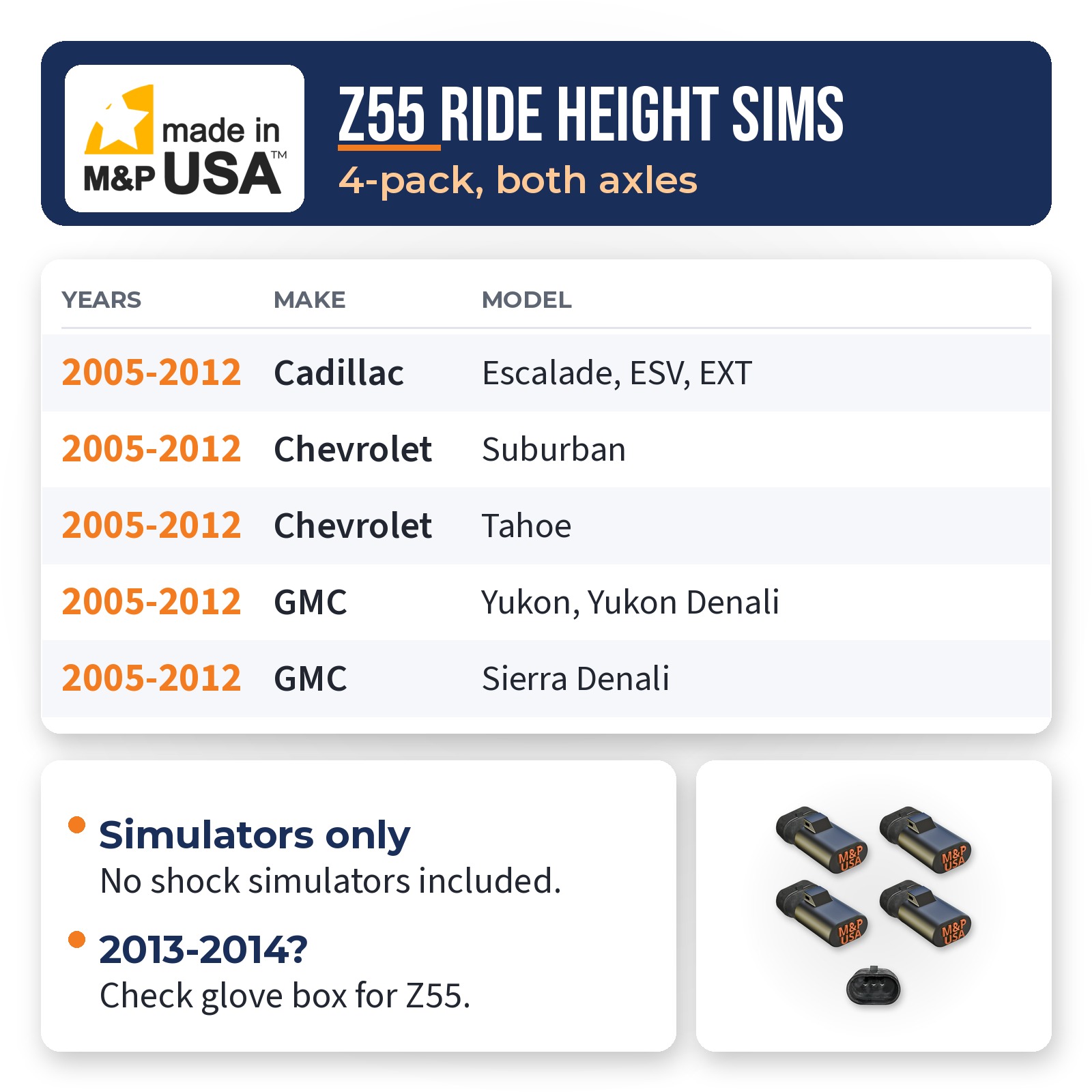

2005-2014 fitment

For 2005-2014 trucks and SUVs with factory AutoRide or MagneRide and the older-style plugs, whatever the glove box label says (Z55 or Z95).

Years Make Model Glove box label
2005-2014 Cadillac Escalade, Escalade ESV, Escalade EXT Z55 or Z95 (EXT ends 2013)
2005-2014 Chevrolet Tahoe, Suburban Z55 or Z95
2005-2014 GMC Yukon, Yukon Denali, Yukon XL Z55 or Z95 (Hybrid: message us first)
2007-2013 Chevrolet Avalanche LTZ Z55

Message us first: 2000-2004 Tahoe, Suburban, and Yukon trucks, the 2000-2006 Suburban 2500, Yukon XL 2500 and Avalanche 2500 (different ride height plug), the 2009-2013 Yukon Denali Hybrid, and the 2005-2013 Sierra Denali. Send us a message before ordering. Vehicle not listed? Contact us to confirm before ordering.

How to install the 2005-2014 ride height simulators

  1. 1Unplug the sensor. With the vehicle off and safely raised, release the locking tab on the factory ride height sensor connector and unplug it.
  2. 2Plug in the simulator. Plug a 3-pin 2005-2014 ride height simulator into the factory connector until it clicks.
  3. 3Cycle the power. Turn the vehicle on for 30 seconds, then off, so the suspension module reads the new ride height.
  4. 4Secure it. Zip-tie each simulator through its mounting hole to a metal surface, away from the exhaust, and not against plastic wire loom or wiring.
  5. 5Lower the vehicle, clear codes, and trim. With all four wheels on the ground, start the vehicle. Suspension codes clear within up to 40 ignition cycles, with a scan tool, or by disconnecting the battery for at least 30 minutes. Then perform a Ride Height Trim Procedure with a scan tool: required on GMC Denali models and recommended on all other vehicles.

We recommend installation by a certified technician. Full printed instructions are included. Questions during installation? Contact us.

Why M&P USA

  • Built to last: every 2005-2014 ride height simulator uses sealed, weatherproof OEM-style connections, not crimp connections that corrode over time.
  • Lifetime warranty: if a part ever fails, we replace it at no charge.
  • Made and supported in the USA by a certified veteran-owned business. Questions before or after your order go to a real person through live chat or our contact form.
  • 30-day returns: see our Return & Refund Policy.

Frequently asked questions

Which vehicles does the 2005-2014 ride height simulator 4-pack fit?

2005-2014 Cadillac Escalade, Escalade ESV, and Escalade EXT (EXT through 2013), Chevrolet (Chevy) Suburban and Tahoe, GMC Yukon and Yukon Denali, and 2007-2013 Chevrolet Avalanche LTZ with factory AutoRide or MagneRide, whether the glove box label says Z55 or Z95.

Does this include shock simulators?

No, this pack is ride height simulators only. If you’re also replacing the shocks, get our 2005-2014 Kit (one axle) or 2005-2014 2-Axle Kit (both axles, pigtails free), which include both.

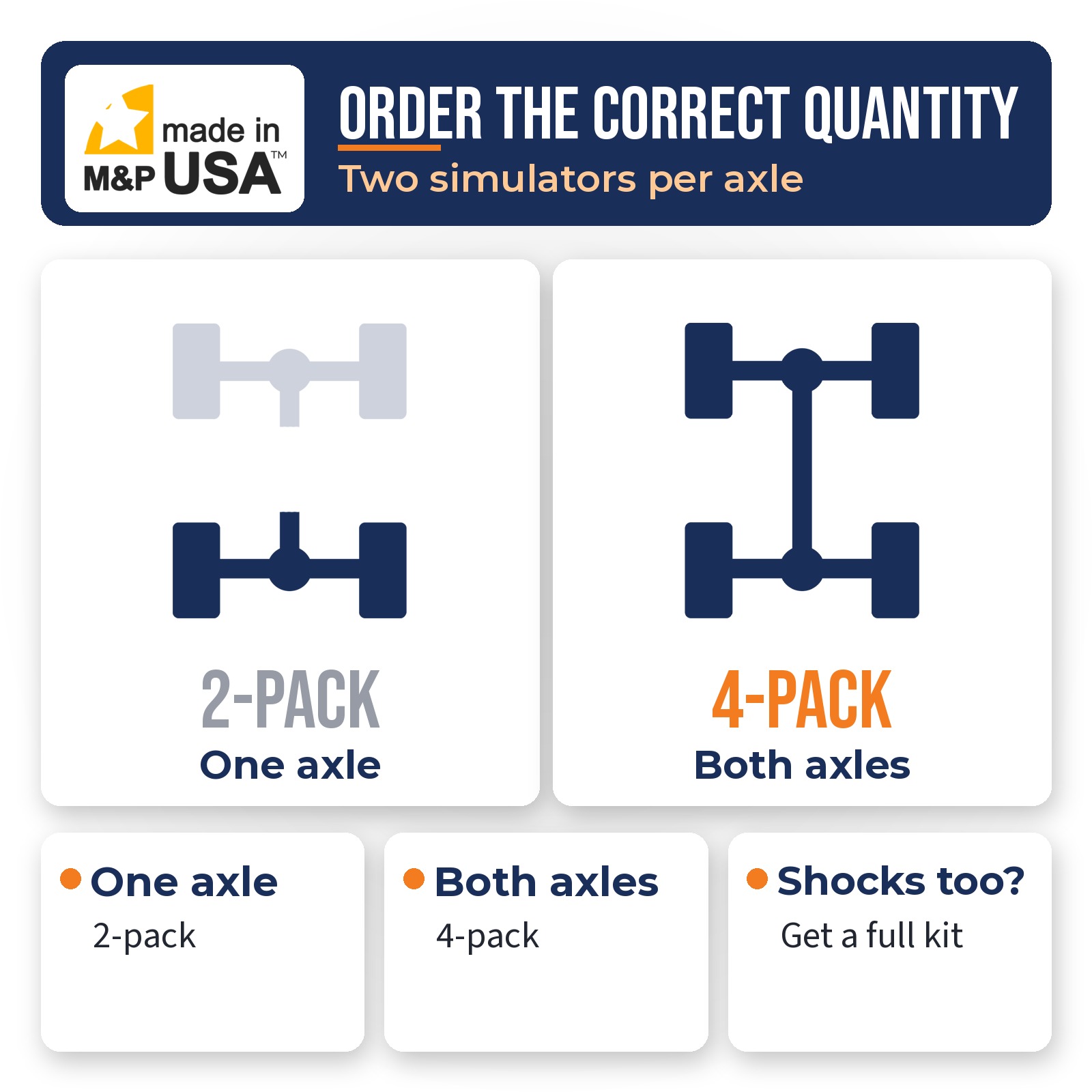

How many do I need?

Each 2005-2014 ride height simulator replaces one sensor. Two cover one axle (front or rear); four cover both axles. This pack covers both axles (front and rear).

What do ride height simulators do?

GM trucks and SUVs with this system monitor ride height sensors along with the shocks. A 2005-2014 ride height simulator sends the module a steady, normal reading in place of the sensor, so the change does not set suspension codes.

Will auto leveling still work with rear air ride?

To keep Automatic Level Control working with rear air shocks, leave the rear ride height sensors connected. Contact us if you’re not sure.

Can I use these with a lift or leveling kit?

Yes. Customers have used our 2005-2014 ride height simulators with leveling and lift kits. The simulators send a steady, normal reading, so the height change does not set suspension codes.

Still not sure this is the right part?

Use Find My Kit, read the Z55 guide, or send us your VIN and a real person will confirm the right part before you order.

Find My KitZ55 guideContact us

MagneRide® is a registered trademark of BWI Group. Other names are used only to identify compatible vehicles. M&P USA is not affiliated with, endorsed by, or sponsored by BWI Group or General Motors. Factory part prices and repair costs mentioned are estimates.

Weight 8 oz
Dimensions 4 × 6 × 1 in
