Z95 2-axle kit: 2015-2020, front and rear
All four corners in one kit: plug-and-play shock and ride height simulators for 2015-2020 Cadillac Escalade, Chevrolet Tahoe and Suburban, GMC Yukon Denali, and 2015-2018 Sierra 1500 Denali with Z95 MagneRide. 2005-2014 models take our 2005-2014 2-Axle Kit, even with a Z95 label.
The M&P USA Z95 2-axle kit (our 2015-2020 2-Axle Kit) converts both the front and rear axles in one order. It is two of our 2015-2020 Kit, our most popular MagneRide bypass, in one box for less. Replace all four factory GM MagneRide (Magnetic Ride Control) shocks with standard passive shocks or coilovers without the “Service Suspension System” warning, fault codes, or the reduced top speed that can come with them. It includes 4 shock simulators and 4 ride height sensor simulators that plug into the factory connectors at all four corners, with no cutting or splicing. Made in the USA by a certified veteran-owned company and backed by our lifetime warranty.
The short answer
- Right kit for 2015-2020 models with the newer-style plugs: Escalade, Tahoe, Suburban, or Yukon Denali, and the 2015-2018 Sierra 1500 Denali. 2005-2014 models take our 2005-2014 2-Axle Kit, even when the glove box label says Z95 (many 2008-2014 Escalades do).
- One kit, all four corners. Same parts as two single kits, for less. Only doing one axle? Get the 2015-2020 Kit.
- No cutting, splicing, or programming. Plug in at each corner, clear the codes, and the warning and speed limit go away.
- 2021-2023 SUV? Its label also says Z95, but it takes the 2021-2023 2-Axle Kit. Need more detail? Read our Z95 MagneRide bypass guide.
On this page
Is this the right Z95 2-axle kit?
Use this Z95 2-axle kit if you have a 2015-2020 GM truck or SUV with factory MagneRide (see the fitment table below) and you are replacing the factory shocks on both the front and rear axles.
Use a different kit if
- You’re only replacing one axle (front OR rear): use our 2015-2020 Kit.
- Your vehicle is a car (Camaro, Corvette, ATS, CTS, XTS, SS): use our 2013-2018 Car Kit. Cars at stock ride height don’t need ride height simulators. If your car is lowered or raised outside the factory range, some models need them, so contact us first.
- Your truck or SUV is a 2005-2014 model (Z55 or Z95 label, older-style plugs): use our 2005-2014 2-Axle Kit.
- Your SUV is a 2021-2023 model: use our 2021-2023 2-Axle Kit.
Not sure which kit you need? Match your plugs to the Check your plugs photo below, use our Find My Kit tool, or send us your year, make, and model and we’ll confirm the right kit before you order.
Check your plugs
Pick by model year and plugs, not the label. Newer-style plugs (the 2-pin shock plug and the 3-pin ride height plug in the right column) take this Z95 2-axle kit. Older-style plugs take our 2005-2014 2-Axle Kit, even when the glove box label says Z95. Plugs don’t match either one? Send us a message before you order.

Before you buy parts, enter your VIN in the NHTSA recall lookup to check for open safety recalls; recall repairs are free at a dealer.

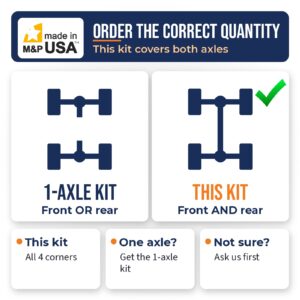

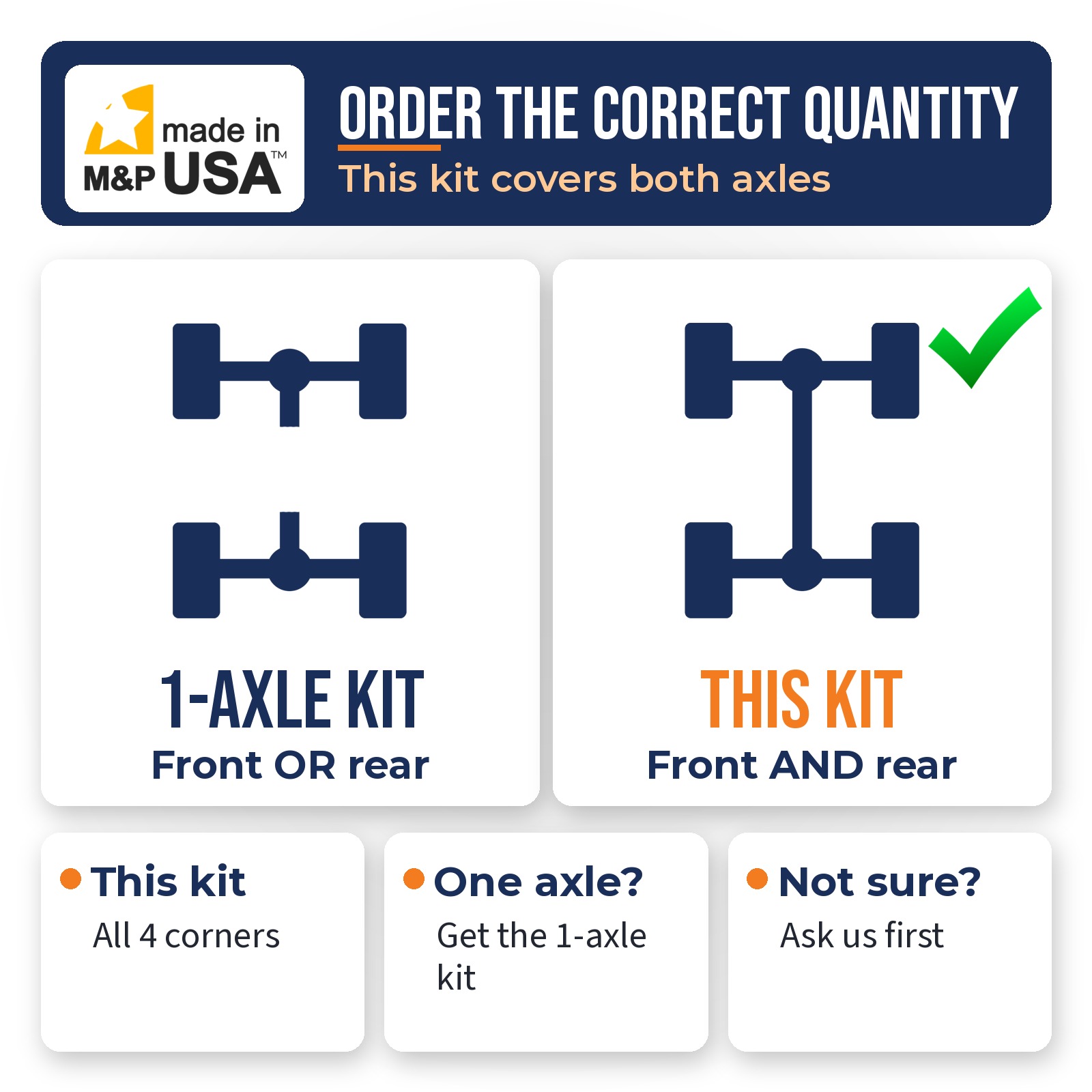

Covers both axles
This Z95 2-axle kit converts the front AND rear axles, all four corners, in one order. Only replacing one axle? Get our 2015-2020 Kit instead.

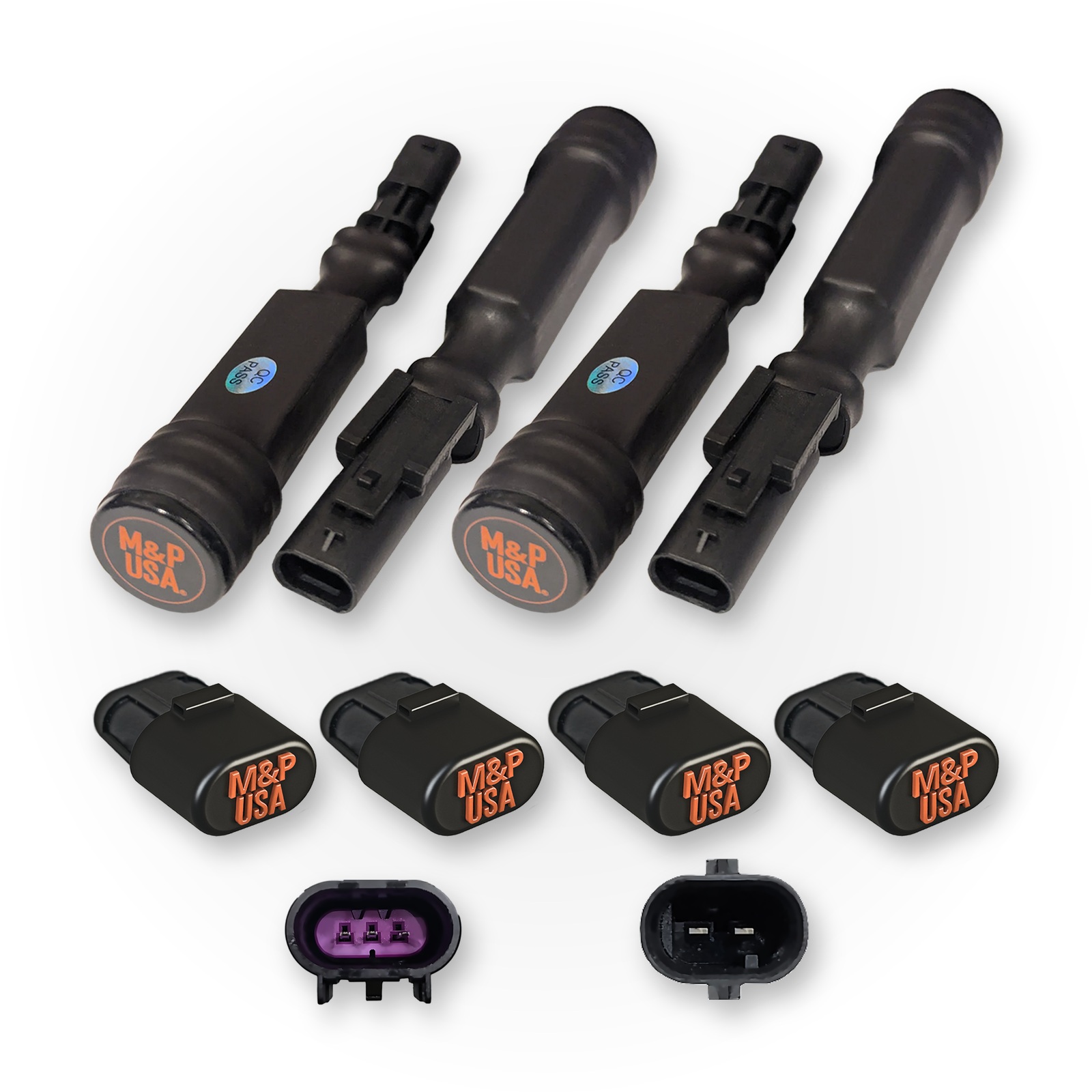

What’s included

- 4 MagneRide shock simulators (also called delete modules): replace the electronic signal from the factory shocks so the suspension module sees a normal system.

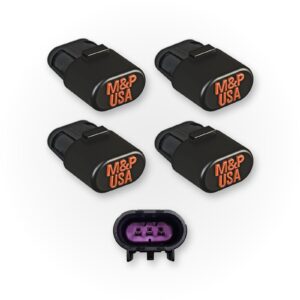

- 4 ride height simulators: keep the ride height sensor circuit reading normally. GM MagneRide SUVs require these to prevent suspension fault codes.
- Zip ties for mounting, plus printed installation instructions.
Specifications
| Item | Detail |
|---|---|
| Product | Z95 2-axle kit, 2015-2020 2-Axle Kit (MPUSA107-2AX) |
| GM option code | Z95 (MagneRide / Magnetic Ride Control) |
| Coverage | Both axles (front and rear), all four corners |
| Pieces | 8: 4 shock simulators, 4 ride height sensor simulators |
| Shock connector | 2-pin factory plug |
| Ride height connector | 3-pin factory plug |
| Installation | Plug and play, no cutting or splicing |
| After installation | Ride Height Trim Procedure with a scan tool (required on GMC Denali) |
| Warranty | Lifetime |
| Returns | 30 days |
| Made in | USA |

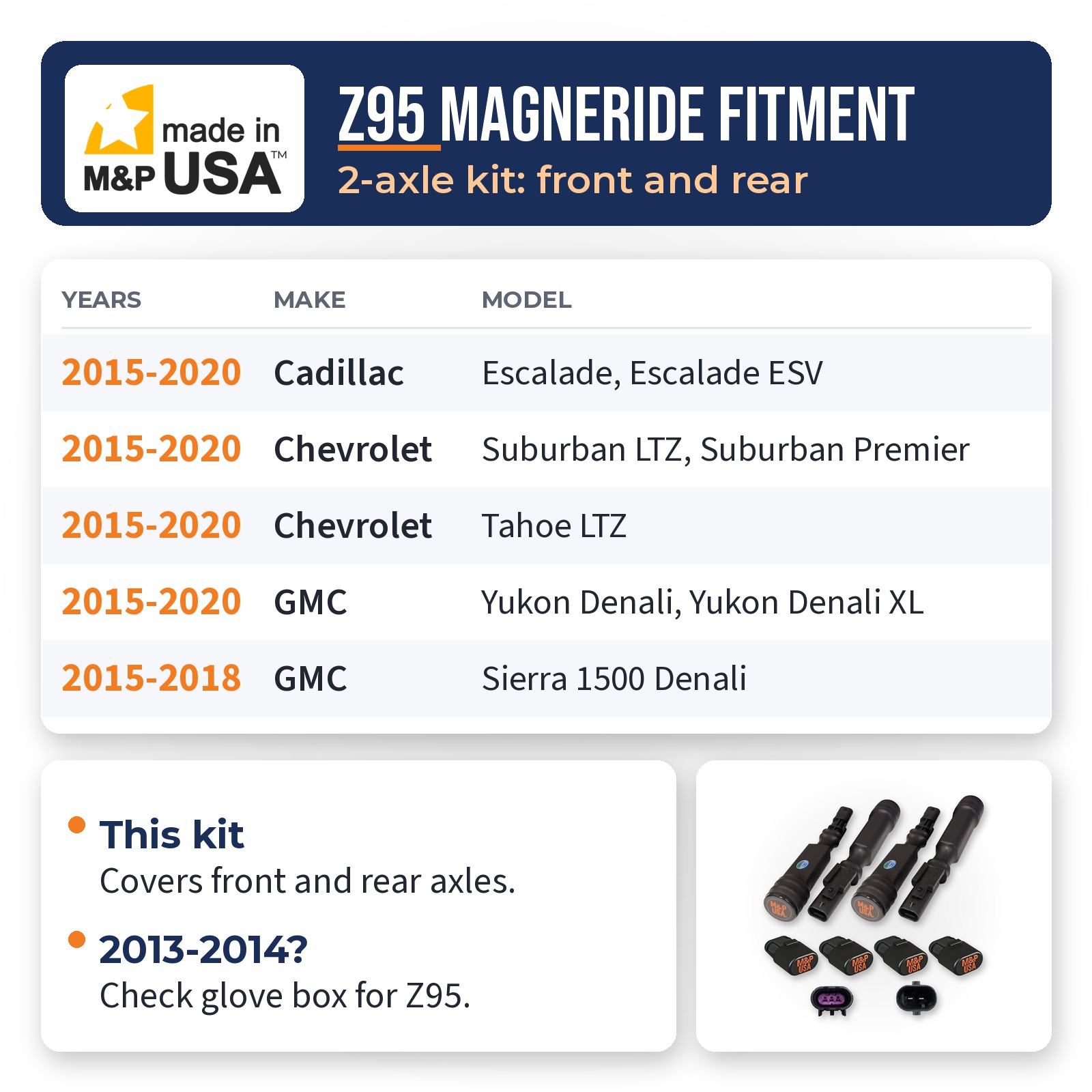

Z95 MagneRide fitment
Plug and play for these 2015-2020 vehicles with factory MagneRide (Z95 on the glove box label) and the newer-style plugs. 2005-2014 models take our 2005-2014 2-Axle Kit, even with a Z95 label.
| Years | Make | Model | Glove box label |
|---|---|---|---|
| 2015-2020 | Cadillac | Escalade, Escalade ESV | Z95 |
| 2015-2020 | Chevrolet | Suburban LTZ (2015-2016), Premier (2017-2020), RST 6.2L Performance Package | Z95 |
| 2015-2020 | Chevrolet | Tahoe LTZ (2015-2016), Premier (2017-2020), RST 6.2L Performance Package | Z95 |
| 2015-2020 | GMC | Yukon Denali, Yukon Denali XL | Z95 |
| 2015-2018 | GMC | Sierra 1500 Denali | Z95 |
2005-2014 model? Use our 2005-2014 2-Axle Kit, whatever the label says. One Z95 2-axle kit covers the whole vehicle. Can’t find the label? Send us your VIN.
Customer-reported fitment: customers have used this kit successfully on the 2020 Chevrolet Tahoe RST and the 2020 GMC Yukon XL Denali, both in the table above. Vehicle not listed? Contact us to confirm before ordering.
If your shock connector looks different from the one in our photos, send us your year, make, and model before ordering and we’ll help you check.
How to install the Z95 2-axle kit
- 1Install the ride height simulators first. With the vehicle off and safely raised, release the locking tab on each factory ride height sensor connector, unplug it, and plug in a 3-pin ride height simulator until it clicks. Do this at all four corners.
- 2Cycle the power. Turn the vehicle on for 30 seconds, then off, so the suspension module reads the new ride height.
- 3Install the shock simulators. Unplug the 2-pin connector from each factory MagneRide shock and plug in a 2-pin shock simulator until it clicks.
- 4Secure everything. Zip-tie the ride height simulators through their mounting hole and the shock simulators around their neck. Mount every part to a metal surface, away from the exhaust, and not against plastic wire loom or wiring.
- 5Lower the vehicle, clear codes, and trim. With all four wheels on the ground, start the vehicle. Suspension codes clear within up to 40 ignition cycles, with a scan tool, or by disconnecting the battery for at least 30 minutes. Then perform a Ride Height Trim Procedure with a scan tool: required on GMC Denali models and recommended on all other vehicles. Any mechanic or dealership can do it in a few minutes.
We recommend installation by a certified technician. Full printed instructions are included with every kit. Questions during installation? Contact us.
Why M&P USA
- Built to last: every M&P USA kit uses sealed, weatherproof OEM-style connections, not crimp connections that corrode over time.
- Lifetime warranty: if a part ever fails, we replace it at no charge.
- Made and supported in the USA by a certified veteran-owned business. Questions before or after your order go to a real person through live chat or our contact form.
- 30-day returns: see our Return & Refund Policy.
Frequently asked questions
Which vehicles does the Z95 2-axle kit fit?
2015-2020 Cadillac Escalade and Escalade ESV, Chevrolet (Chevy) Suburban and Tahoe, GMC Yukon Denali, and 2015-2018 GMC Sierra 1500 Denali equipped with the Z95 MagneRide package. 2005-2014 models take our 2005-2014 2-Axle Kit, even with a Z95 label.
My 2009-2014 Escalade label says Z95. Which kit?
Our 2005-2014 2-Axle Kit. 2005-2014 models have the older-style plugs, so they take the 2005-2014 kits even when the label says Z95. Match your plugs to the Check your plugs photo, or send us your VIN and we’ll confirm.
Why does my dashboard say “Service Suspension System”?
The suspension module monitors every MagneRide shock and ride height sensor. When a MagneRide shock fails or is replaced with a standard shock, the module loses the signal it expects and sets the warning. The simulators in the Z95 2-axle kit give the module the signals it expects, so the warning clears once the codes are cleared.
Will it remove the 80 mph speed limit?
Yes. When the suspension module detects a MagneRide fault, many GM vehicles limit top speed (customers report 80 to 85 mph). Once the Z95 2-axle kit is installed and the codes clear, the limit goes away.
Can I use it with a lift, leveling, or lowering kit?
Yes. Customers have installed our Z95 kits with leveling kits, lift kits, and lowered setups. The ride height simulators send the module a steady, normal ride height reading, so the height change does not set suspension codes.
Does this kit cover the whole vehicle?
Yes. The Z95 2-axle kit covers both the front and rear axles, all four corners. If you are only replacing one axle, our 2015-2020 Kit covers front OR rear.
Does it require cutting wires or programming?
No wire cutting, splicing, or module programming. The Z95 2-axle kit plugs into the factory connectors on supported vehicles. After installation, a Ride Height Trim Procedure with a scan tool is required on GMC Denali models and recommended on all other vehicles.
Does it work with rear air suspension (air ride)?
Yes. To keep Automatic Level Control working with non-magnetic rear air shocks, leave the rear ride height sensors connected. If you switch to non-air rear shocks, the rear air lines must be connected to each other so the compressor does not run constantly. The printed instructions show how.
Will it work on my car?
No, the Z95 2-axle kit is for trucks and SUVs. Cars with MagneRide use our 2013-2018 Car Kit.
Still not sure this is your kit?
Use Find My Kit, read the Z95 guide, or send us your VIN and a real person will confirm the right kit before you order.
MagneRide® is a registered trademark of BWI Group. Other names are used only to identify compatible vehicles. M&P USA is not affiliated with, endorsed by, or sponsored by BWI Group or General Motors. Factory part prices and repair costs mentioned are estimates.
